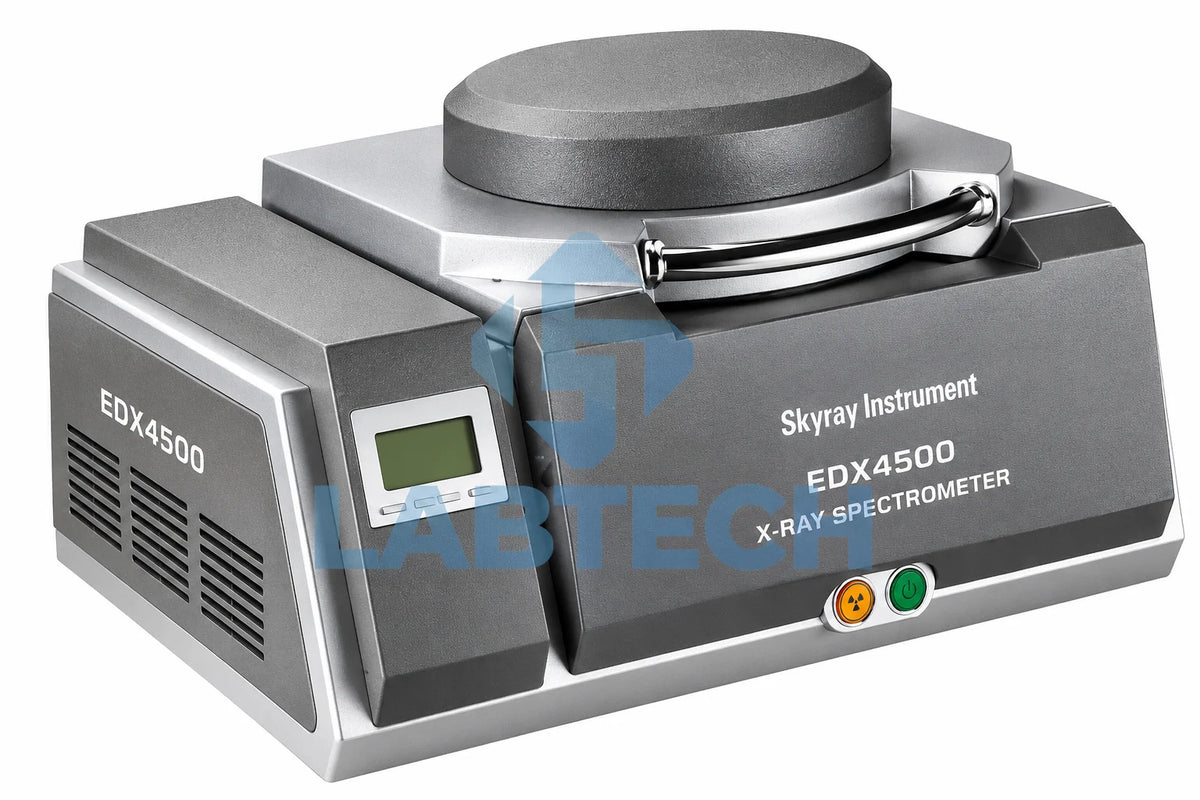

Skyray EDX 4500 XRF Spectrometer

The Skyray EDX 4500 XRF Spectrometer is an analytical instrument designed for rapid, accurate, and non-destructive elemental analysis. Using X-ray fluorescence (XRF) technology and an intelligent vacuum system, it supports testing of metallic materials, steel products, and a wide range of sample types.

The EDX 4500 is particularly suitable for steel industry laboratories that require efficient analysis of alloy composition and hazardous elements. Its automated optical components, digital multi-channel technology, and dedicated steel-testing accessories help streamline routine quality-control workflows.

Product Specifications

• Brand: Skyray Instrument
• Model: EDX 4500
• Instrument Type: XRF Spectrometer
• Detection Range: Mg–U
• Elemental Content Range: ppm to 99.99%, depending on the element
• Simultaneous Analysis: Dozens of elements simultaneously
• Analysis Accuracy: 0.05% under the brochure's stated test conditions
• Test Time: 60–200 seconds
• Detector Energy Resolution: 145 ± 5 eV
• High Voltage: 5 kV–50 kV
• Tube Current: 1 mA
• Sample Types: Powder, solid, and liquid
• Input Voltage: AC 220 V; optional 110 V
• Ambient Temperature: 15–30°C
• Ambient Humidity: 35–70%
• Sample Chamber Volume: 320 × 100 mm
• Dimensions: 660 × 510 × 350 mm
• Weight: 65 kg
