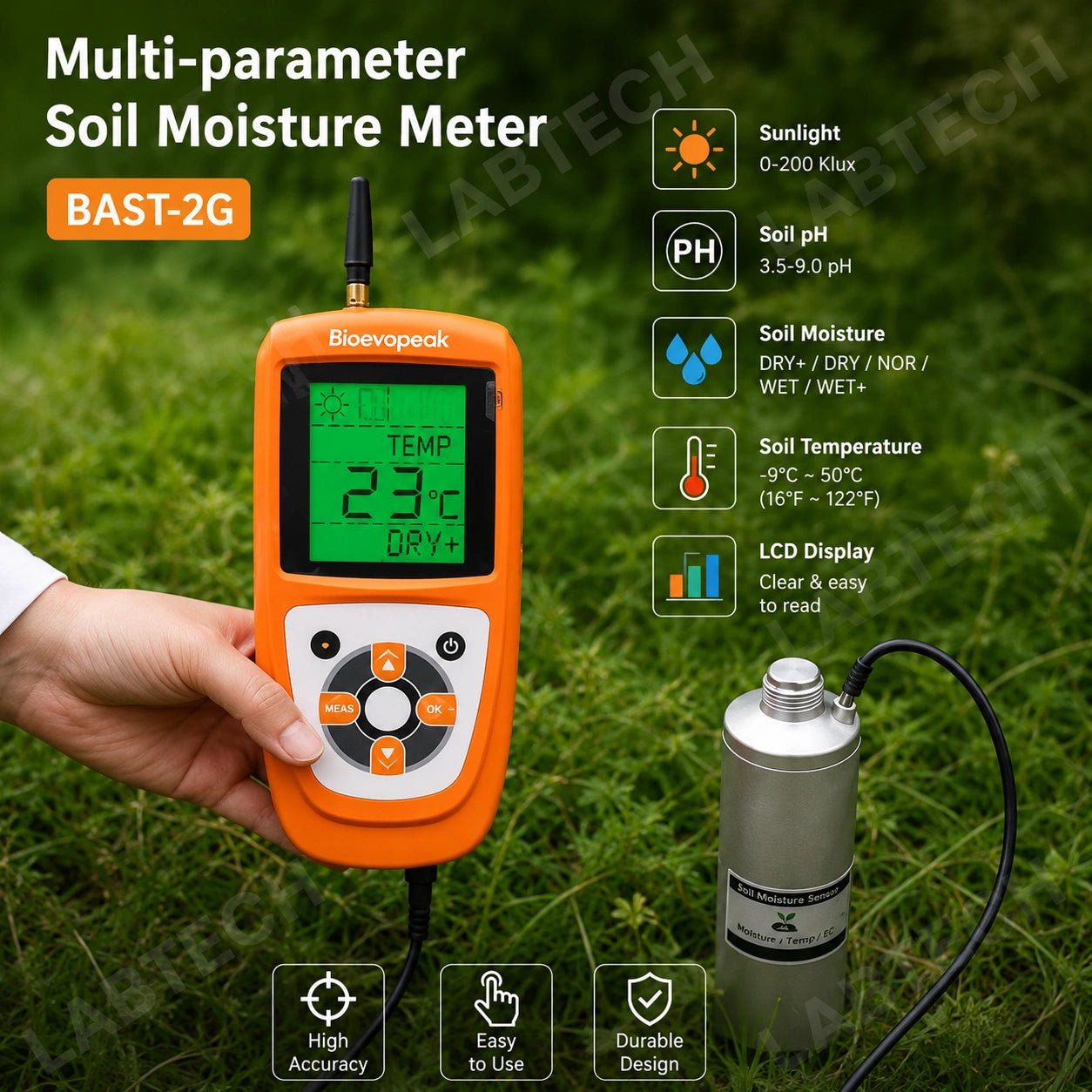

Handset:

1. Small and exquisite, easy to carry, and LCD display;
2. Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
3. Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
4. Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
5. Data can be read on handset and also import to PC.
6. Power-off memory function: data already saved in SD card won’t lose when lose power.
7. Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
8. Auto detection: when sensors connect to handset, you can search different sensor.
9. Synchronous detection: 32 channels to detect same time as you combine.
10. RS485 wire communication, sensor communication cables could reach about 100 meters.
11. Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.

Software

1. Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
2. Coloring the overrun area function, make it visual display.
3. Save the data in EXCEL format as a copy.
4. Be able to view period of parameter or graph, and can be printed.
5. All curvilinear coordinates can be set and move, which make analysis easier.

Specifications

Handset technical parameters

Instrument Specifications

Sensor Technical Specifications
