Specifications

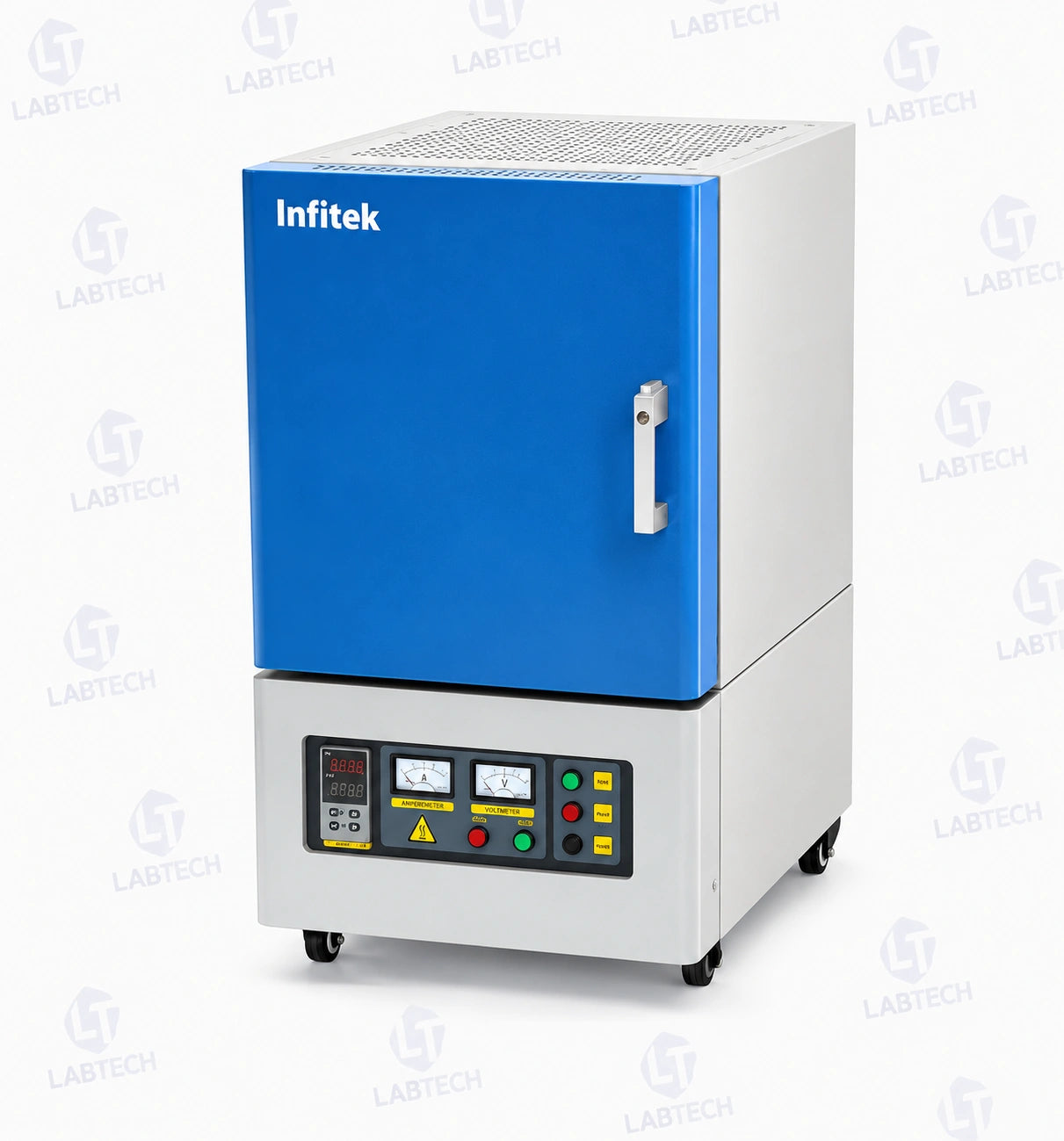

The FNC-BX1700 Series Muffle Furnace is a high-temperature box-type laboratory furnace designed for applications requiring controlled heating up to 1700°C. It features MoSi₂ heating rods, a B-type thermocouple, ceramic-fiber chamber insulation, and PID automatic temperature control. The furnace supports programmable temperature control with up to 30 segments, making it suitable for demanding laboratory and material-testing applications.
| Category | Specification | FNC-BX1700-2 | FNC-BX1700-4 | FNC-BX1700-9 | FNC-BX1700-16 |
|---|---|---|---|---|---|
| Temperature | Max. Temp. (°C) | 1700 | |||
| Continuous Working Temp. (°C) | ≤1550 | ||||
| Heating Rate | 0–30°C/min, suggest to be 5–10°C/min | ||||
| Accuracy (°C) | ±1°C | ||||
| Uniformity (°C) | ±5°C | ||||
| Chamber | Chamber Dimension (W×D×H) (mm) | 100×100×100 (Or customize as your requirement) |
150×200×150 (Or customize as your requirement) |
200×300×200 (Or customize as your requirement) |
300×400×300 (Or customize as your requirement) |
| Size | External Size (W×D×H) (mm) | 350×470×570 mm | 510×700×805 mm | 550×700×895 mm | 640×850×1050 mm |
| Capacity | Capacity (L) | 1 | 4.5 | 12 | 36 |
| Heating | Heating Element | MoSi₂ heating rod | |||
| Temperature Sensor | Thermocouple | B Type | |||
| Chamber | Chamber Material | Ceramic fiber | |||
| Electrical | Electricity | AC 220V, 50Hz/60Hz | AC 380V, 50Hz/60Hz | ||
| Power | Max. Consumption | 2 kW | 4 kW | 9 kW | 16 kW |
