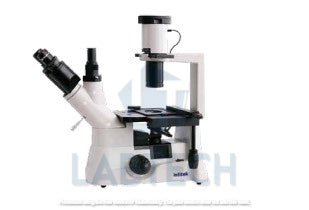

Inverted Microscope MSC-IV406
Inverted Microscope MSC-IV406
Couldn't load pickup availability
Features:
Viewing head
Eyepiece
Objective
Stage
Condenser
Focusing
Phase contrast sliding plate
Centering telescope
Filter
Light source
*Fluorescence attachment
*Optional
Trinocular Head Inclined at 45°, Interpupillary Distance 50-75mm
WF10X/ 20mm
LWD Plan ObjectiveLWDPL4X\10X\20X\40X
Double layers mechanical stage,Stage size: 242mmx 172mm,Central
stage: Φ110mm,Moving range: 75mm × 50mm
N.A.0.3Abbe condenser W.D .75mm
Coaxial coarse&fine focusing adjustment with rack and pinion mechanism
Fine focusing scale Value 0.002mm
Center of phase contrast ring plate adjustable
Centering telescope
Blue,green,yellow and froster glass
Halogen bulb12V/30W,Adjustable brightness
B.GWave band ,220V(110V)/100W Mercury lamp
Photograph connecting tube,adapter with MD or PK mount ,4X photograph
eyepiece
