Specifications
Elitech Tlog 100 EH data loggers are used to monitoring and record the temperature (humidity) for foods, pharmaceuticals, and other products during their storage and transport, and in each stage of cold chain logistics, such as refrigerated contain-ers/ trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.

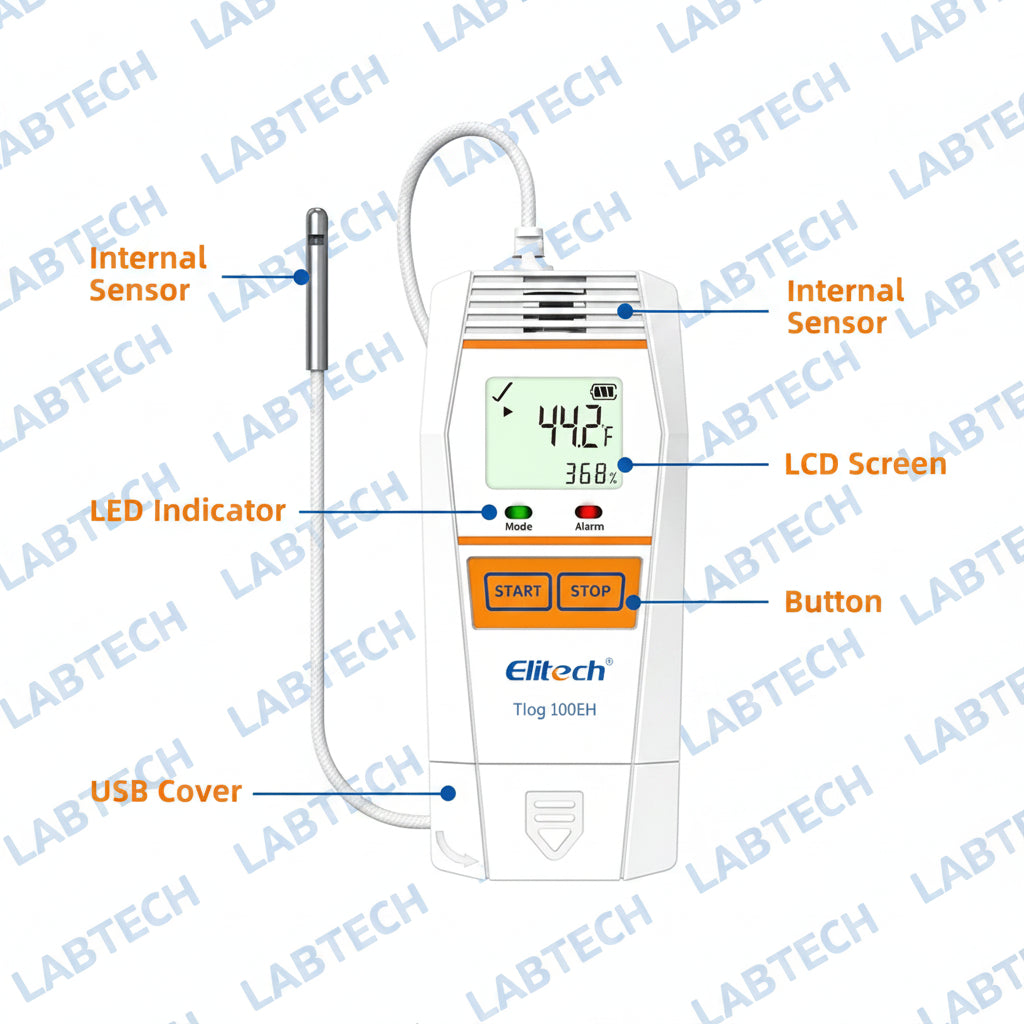

This temperature recorder features a USB port, LCD screen and two buttons designed to prevent accidental touches. You can view device status and parameters by button press, or customize various parameters, such as start/stop modes, multiple thresholds, storage modes, etc. You can also view automatically generated PDF report without using the ElitechLog software.
Technical Specifications
| Specification | Tlog 100EH |
|---|---|
| Measurement | Temperature & Humidity |
| Temperature Measurement Range | -40℃ ~ 85℃ (-40℉ ~ 185℉) |
| Temperature Accuracy | ±0.3℃ / ±0.6℉ (-20℃ ~ 40℃); ±0.5℃ (Other) |
| Humidity Measurement Range | 0%RH ~ 100%RH |
| Humidity Accuracy | ±3%RH (25℃: 20%RH–80%RH); ±5%RH (Other) |
| Sensor Type | External Temperature & Humidity Probe |
| Resolution | Temperature: 0.1℃ | Humidity: 0.1%RH |
| Memory | 32,000 Data Points |
| Logging Interval | 10 Seconds – 24 Hours |
| Battery | CR2450 3.0V Button Cell |
| Protection Grade | IP65 |
| Dimensions | 115.5 × 47 × 16.2 mm |
| Probe Length | 42 in (107 cm) |
| Weight | 70 g |
| Alarm Thresholds | Temperature: Up to 3 High Limits & 2 Low Limits |
| Alarm Type | Single / Cumulative |
Package includes:
1 x Data Logger
1 x User Manual (Download)
1 x Calibration Certificate
Note:
A calibration certificate issued by the Elitech quality department center is included with every data logger. For a certificate issued by a third party, please make sure to select "ISO 17025 Certified" in the variation when purchasing your data logger. This calibration certificate is issued by a laboratory that conforms to International Organization for Standardization (ISO) 17025 international standards for calibration testing and traceability. For most of the product from Elitech you purchase that includes an ISO verification certificate, we need to send the product to a third-party ISO agency for verification, which will prolong the overall logistics process by 1-3 weeks. If you have stringent needs regarding the delivery time, please be careful to purchase products that include ISO verification certificates. We'd like to remind the customers who urgently need our products that all our loggers also come with a calibration certificate from the factory.
