Specifications

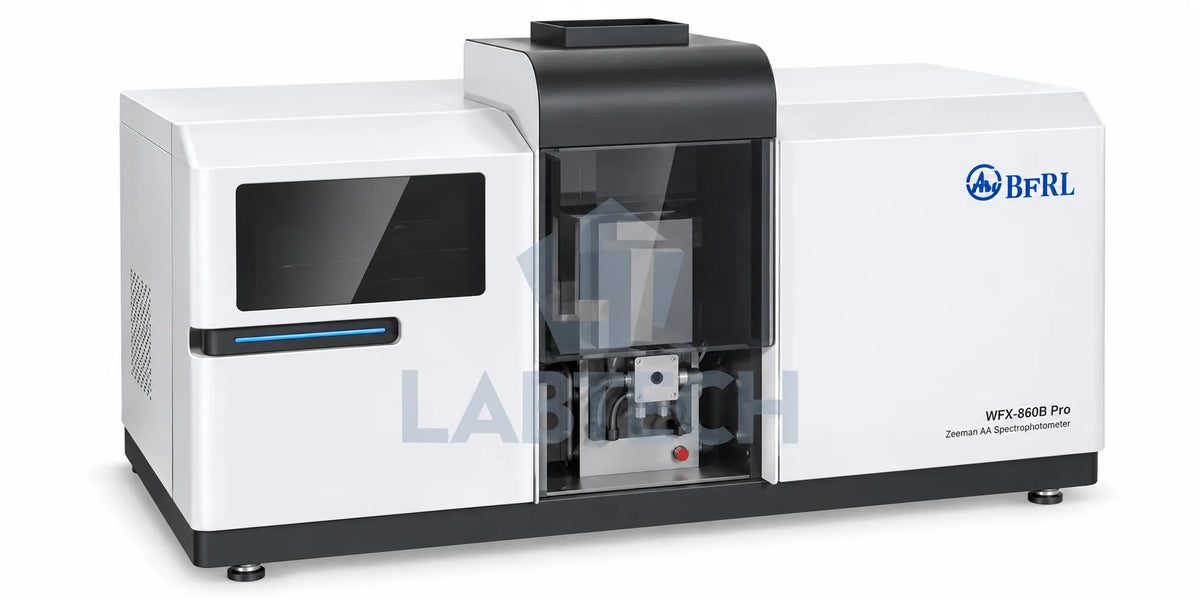

The BFRL WFX-860B Pro Zeeman AA Spectrophotometer is an advanced analytical instrument designed for elemental analysis and quantitative determination of metals and other measurable elements in various sample types. It combines Zeeman background correction technology, a double-beam optical system, and an automatic flame atomization system to support accurate, stable, and reliable analytical performance.
Equipped with an automatic 8-lamp turret, intelligent lamp optimization, and a Czerny–Turner monochromator, the WFX-860B Pro provides flexible analytical operation across a wide wavelength range. Its constant and transverse magnetic field Zeeman background correction system helps reduce background interference, including interference above 2 Abs, according to the manufacturer.
The instrument features automatic ignition, precision gas-flow control, intelligent flame adjustment, and safety monitoring. Its operating software supports automated instrument optimization, calibration curve fitting, concentration calculations, and multi-task analysis. Ethernet connectivity provides stable communication with the control computer.
| Specification | WFX-860B Pro |
|---|---|
| Instrument Type | Zeeman AA Spectrophotometer |
| Wavelength Range | 170–900 nm |
| Wavelength Accuracy | Better than ±0.10 nm |
| Wavelength Repeatability | ≤ 0.05 nm |
| Optical System | Czerny–Turner monochromator |
| Diffraction Grating | 1,800 lines/mm |
| Spectral Bandwidth Settings | Seven, automatically set and optimized |
| Baseline Stability | 60-minute drift ≤ 0.0005 Abs; instantaneous noise ≤ 0.0005 Abs |
| Dynamic Baseline Stability | 30-minute drift ≤ 0.001 Abs; instantaneous noise ≤ 0.001 Abs |
| Background Correction | Better than 150 times |
| Zeeman Magnetic Field | Up to 1.0 T |
| Copper Detection Limit | ≤ 0.002 μg/mL |
| Copper Characteristic Concentration | ≤ 0.03 μg/mL/1% |
| Copper Precision | ≤ 0.25% |
| Software Compatibility | Windows 7 and Windows 10 |
| Communication Interface | Ethernet |
| Dimensions (L × W × H) | 1010 × 620 × 630 mm |
| Weight | 115 kg |
