Specification

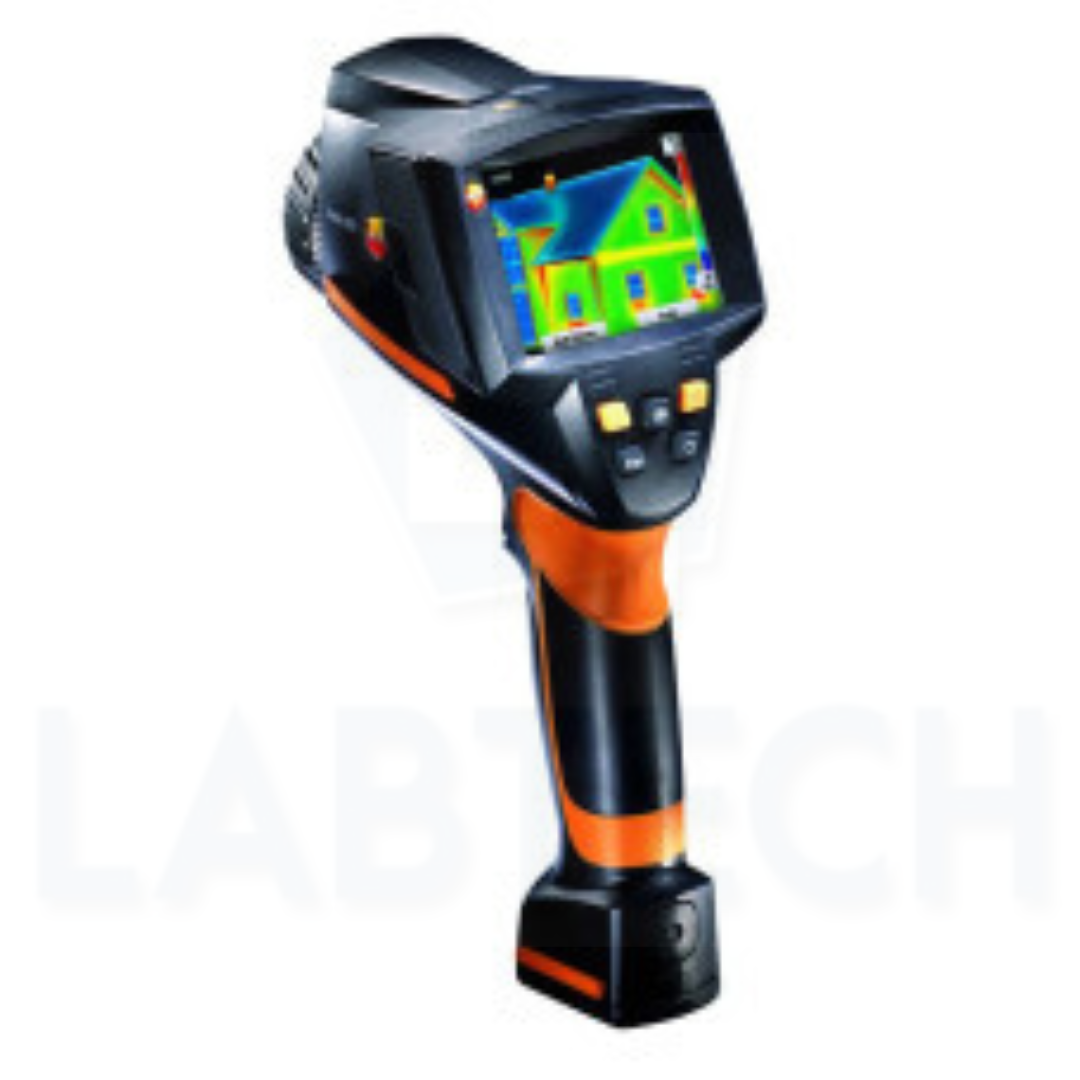

You can carry out completely non-destructive tests on materials and components in industrial thermography with the testo 875-1i. This allows you to reveal problems in industrial maintenance and production monitoring before a malfunction occurs or fire risks develop. And for good measure, you can create a real image in parallel to the thermal image thanks to the built-in digital camera. This makes documentation and assignment easier for you.
You can detect possible structural defects with the testo 875-1i thermal imager in building thermography. With the excellent thermal sensitivity of < 50 mK, you can quickly and efficiently track down energy losses and so help your customers to save expensive heating costs and plan refurbishments.
In the “Applications” tab, you can find out more about the thermal imager's fields of application.
Delivery Scope
- - Robust case
- Pro software for image evaluation on the PC
- Soft case
- Carrying strap for the thermal imager
- SD memory card
- USB cable for data transfer to PC
- Lens cleaning cloth
- Mains unit
- Li-ion battery
- Adapter for tripod mounting -
Infrared image output Infrared resolution
160 x 120 pixels
Focus
manual
Image refresh rate
33 Hz
SuperResolution (IFOV)
2.1 mrad (Standard lens)
SuperResolution (Pixel)
320 x 240 pixels
Geometric resolution (IFOV)
3.3 mrad (Standard lens)
Minimum focus distance
0.1 m (Standard lens)
Field of view
32° x 23°
Thermal sensitivity
˂ 50 mK at +30 °C
Image output visual Image size
640 x 480 pixels
Minimum focus distance
0.4 m
Image presentation Display type
3.5" LCD with 320 x 240 pixels
Display option
IR image only; real image only; IR image / real image
Number of colours
10
Colours
10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Video output
USB 2.0
Measurement Measuring range
-30 to +100°C; 0 to +350 °C (switchable)
Accuracy
±2 °C, ±2 % of m.v. (±3 °C of m.v. at -30 to -22 °C)
Reflected temperature
manual
Measuring function Surface moisture distribution
Not included
Humidity measurement
Not included
Solar mode
Included
Analysis function
Up to 2 measurement points, hot/cold spot recognition
Imager equipment Digital camera
Included
Video streaming
Included
Laser
Included
Standard lens
32° x 23°
Power-LED
Not included
Imager storage File format image
.bmt; export option in .bmp; .jpg; .png; .csv; .xls
Storage device
SD card 2GB (approx. 2.000 images)
Power supply Battery type
Fast-charging, Li-ion battery can be changed on-site
