Three axis (X, Y, Z) electromagnetic field measurement (30Hz to 300Hz)

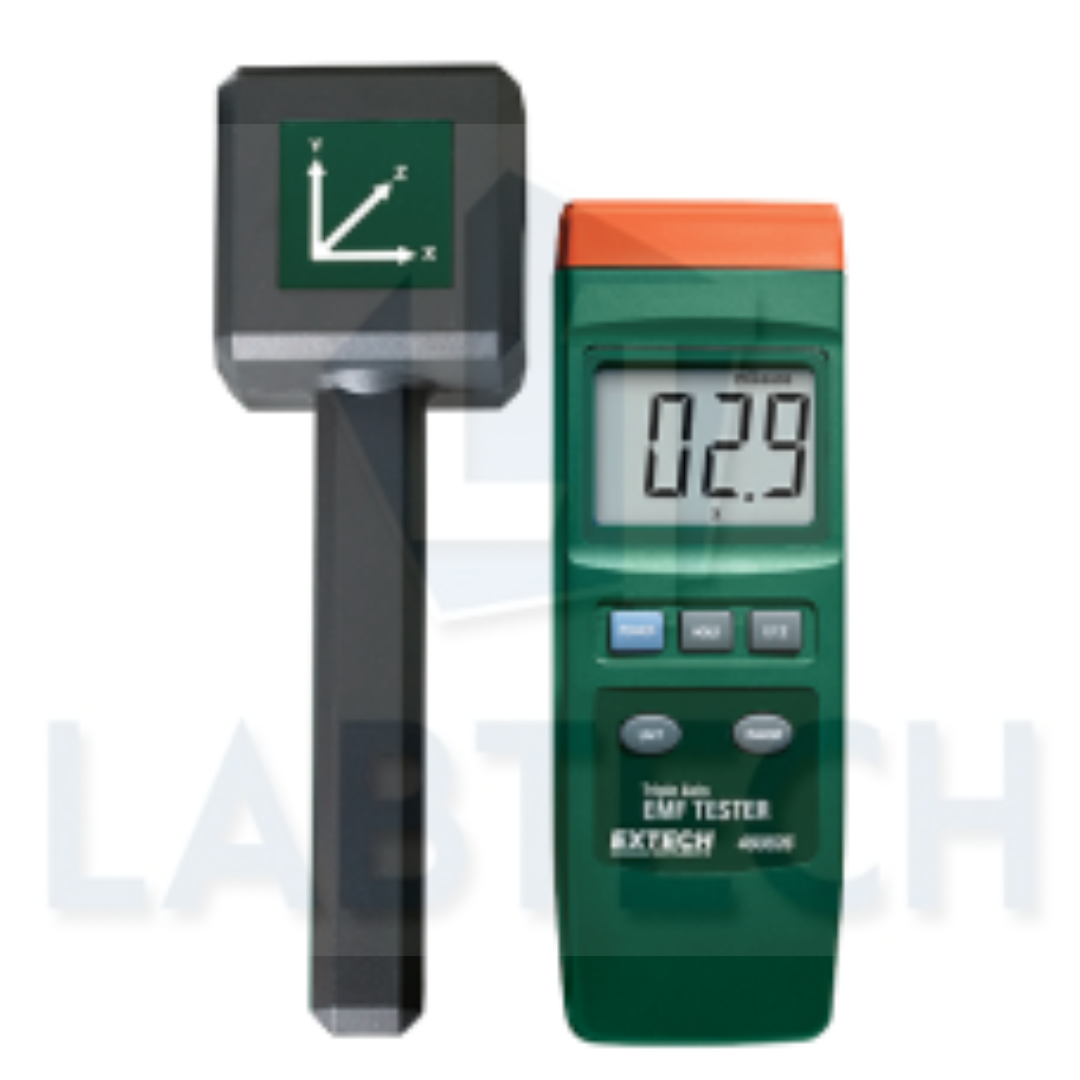

480826 Triple Axis EMF Tester is designed to provide a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices. Provides Three axis (X, Y, Z direction) electromagnetic field measurement. Calibrated to measure EMF radiation at wide bandwidths from 30 Hz to 300 Hz. Complete with sensor with 3 ft. (930 mm) cable, 9V battery, and hard carrying case.

Triple Axis EMF Tester Features:

• Three axis (X, Y, Z direction) electromagnetic field measurement
• Ideal for EMF measurements around power lines, electrical appliances and industrial devices
• Wide measuring ranges (3 ranges of µTesla or mGauss)
• Big digit LCD display, Data hold
• Easy to use remote probe
• Complete with sensor with 3ft (930mm) cable, 9V battery, and hard carrying case

Specifications             Range
µTesla                       20µTesla
                                   200µTesla
                                  2000µTesla
mGauss                    200mGauss
                                  2,000mGauss
                                  20,000mGauss
Number of Axis      Three axis X, Y, Z direction
Band width              30Hz to 300Hz
Sampling Time        Approx. 0.4 second
Power Current         Approx. DC 2.7mA
Dimensions             7.6x2.6x1.2" (195x68x30mm)
